  Side Seal Systems

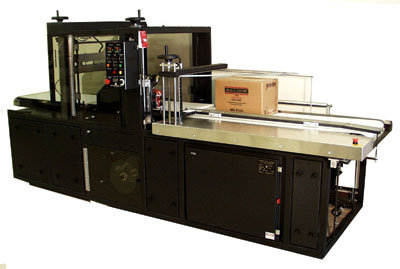

Captain-STS/CM

 Up to 30 packages per minute in Intermittent Mode, and 60 plus packages per minute in Continuous Mode.

Characteristics

  • 220 Single Phase VAC Operation
  • Infinite Length Side Seal System
  • Solid Knife Seal System
  • Allen-Bradley PLC Controlled
  • Touch Pad, Operator Control Panel
  • Preprogram Set-Up Functions
  • Standard "off the shelve" Components
  • Pneumatic Film Tracking System
  • Air Brake/Clutch System for positive gapping
  • Simple Change Over with Scales
  • Heavy Duty Construction with Casters

System Specifications

Package Size:
Minimum
Maximum

Width
Height
Length
Speed
Film

3"
*
4"
0-70 ppm.
*
17"
8"
Infinite

28" CF

Machine Specifications

Width
Height
Length
In feed Height
Electric
Pneumatic
Weight

44-53"
65"
131"
32"+4"
220V, 1PH.20amp
90 PSI
1800 lbs. (approx.)

Captain-STS/IM


System Specifications

Model
17
22
30
Package Size
3"-16"
3"-21"
6"-29"
Height (up to)
6"
6"
12"
PPM (approx.)
25+
30+
25+
Length
Infinite in all systems

Machine Specifications

Length
91"
100"
108"
Width
43"
51"
64"
Height
60"
60"
60"
Electric (vac)
120/15A
120/15A
120/15A
Air (100 psi)
@1CFM
1CFM
1CFM

Conveyor Specification

Elevation
34"-36"
34"-36"
34"-36"
Belt Speed
62 FPM
0-95 FPM
0-95 FPM



Contact Us | Free Assistance



This shrink wrapping system can accommodate an enless variety of product configurations up to 12" in height.

Operator Control Panel

Automatic Scrap Removal

Simple Cage Cover
